LM225-2 FORP

Play Centre HECTOR

  • 2 Year
  • 4.38 x 10.78 x 3.45 m
  • Safety

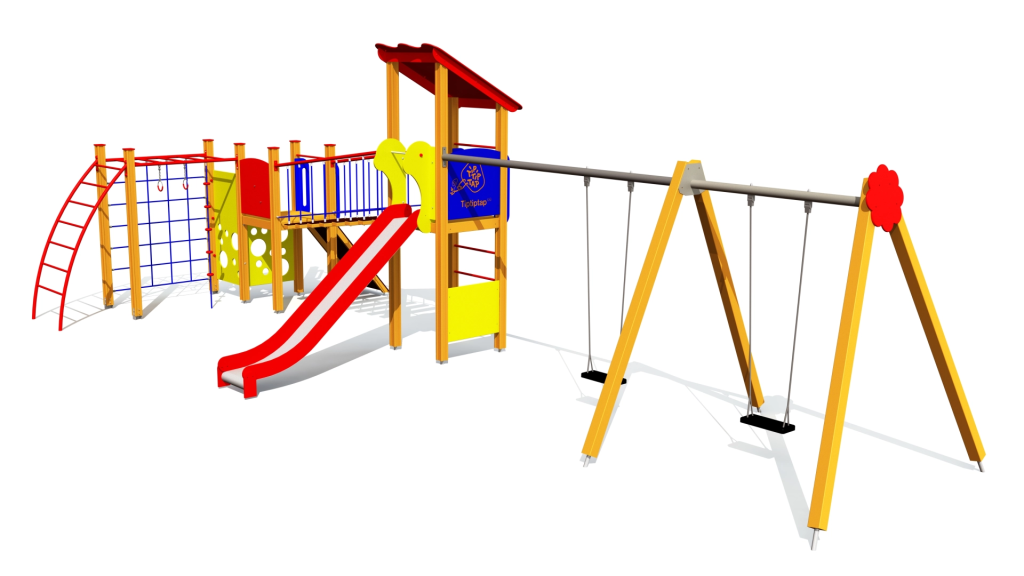

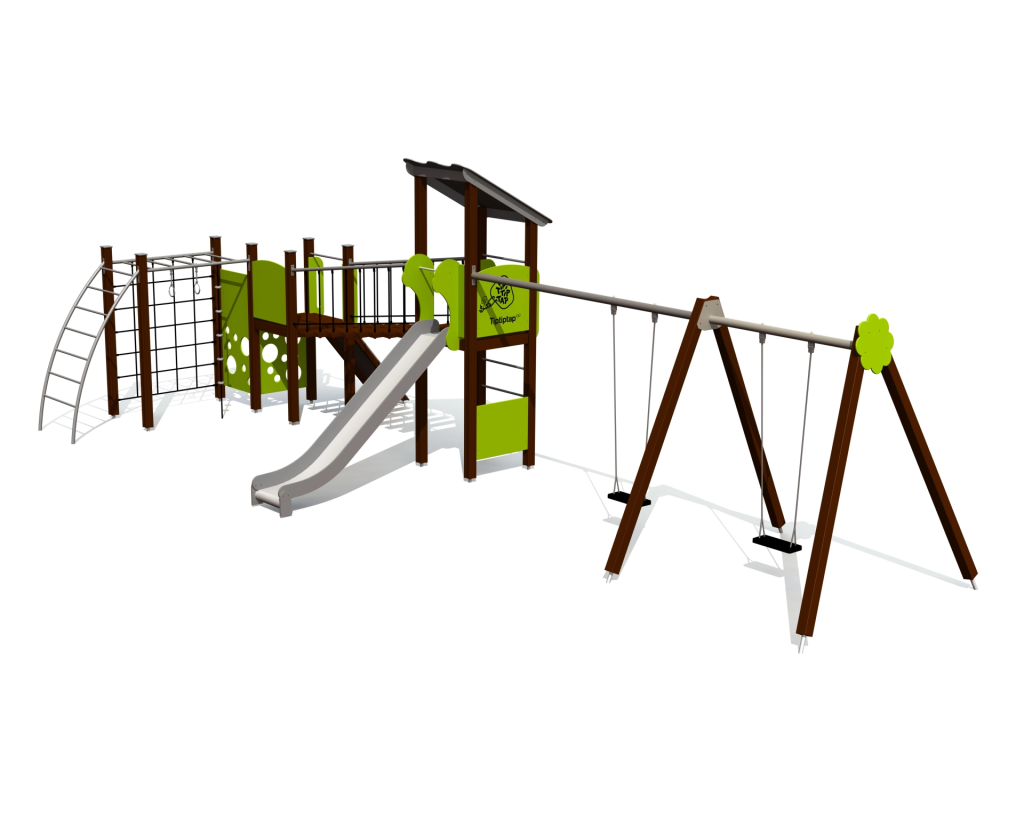

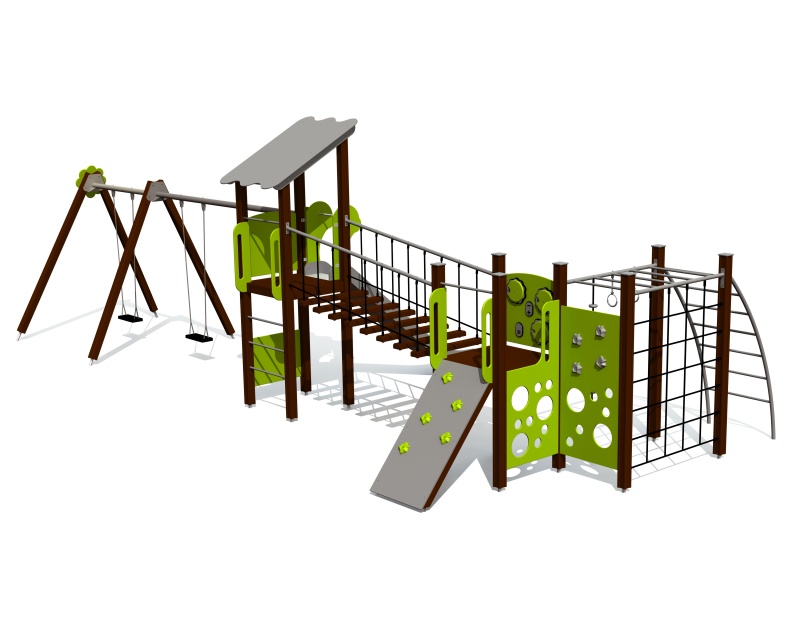

A versatile play centre with two platforms, a slide and two swing sets. A ladder and a rock climbing slope offer a way up to the platforms, a slide offers a way down from the higher platform. The platforms are connected by a balance bridge with moving steps. A strong metal beam is attached to the play centre, which holds two aluminium reinforced rubber swing seats (swing sets KRK2 are included in the price of this product). An adjoined climbing complex of several net walls, a horizontal ladder, a rock climbing wall and an arched ladder help develop dexterity and climbing skills. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

Product consists of

  • Platforms 1 pcs with a height 1.55 m, Plastic covered laminated wood
  • Platforms 1 pcs with a height 1.2 m, Plastic covered laminated wood
  • Roofs 1 pcs, HDPE plastic
  • Slides 1 pcs with a height 1.55 m, Stainless-steel, HDPE plastic sides
  • Climbing walls 2 pcs, HDPE plastic
  • Climbing nets 1 pcs, 16 mm six-strand PES cover braided steel ropes
  • Ladders 2 pcs, Galvanized and powder-coated steel
  • Bridges 1 pcs
  • Slopes 1 pcs, Plywood
  • Activity panels 1 pcs, HDPE plastic
  • Posts 15 pcs, Laminated wood
  • Beams 2 pcs
  • Panels/Plates 2 pcs, HDPE plastic
  • Grips for hands and/or feet 7 pcs, HDPE plastic
  • Tubes 8 pcs, Galvanized and powder coated steel

Product Features

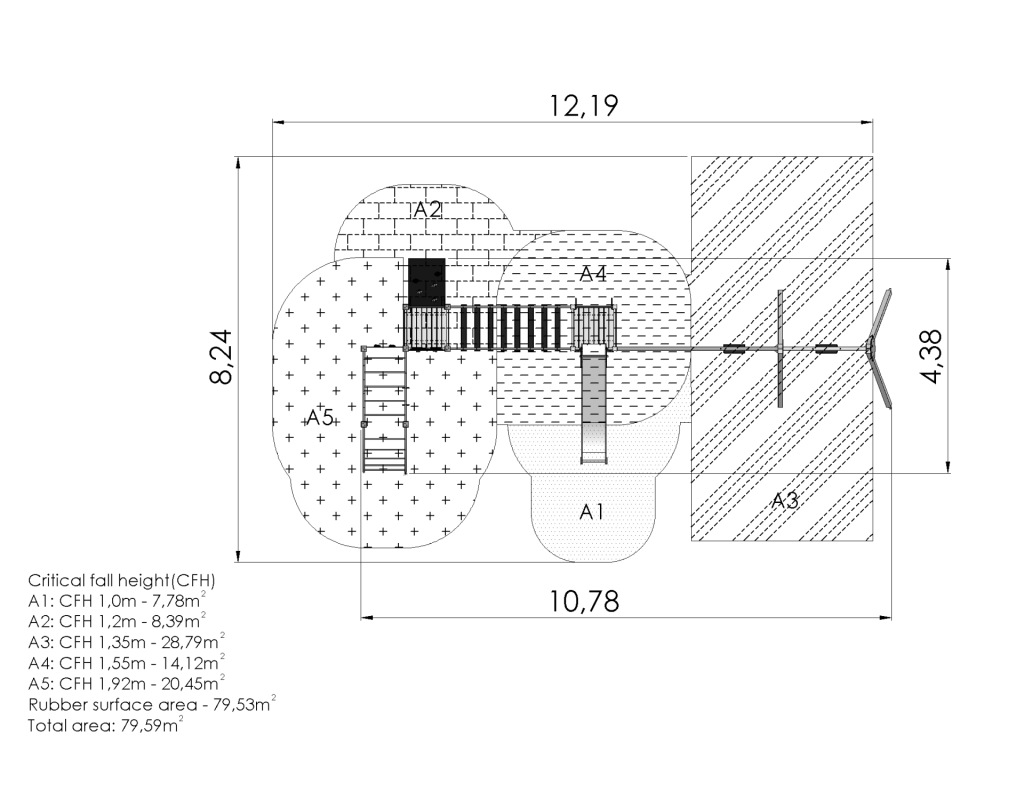

  • Safety area width: 8.24 m
  • Safety area length: 12.19 m

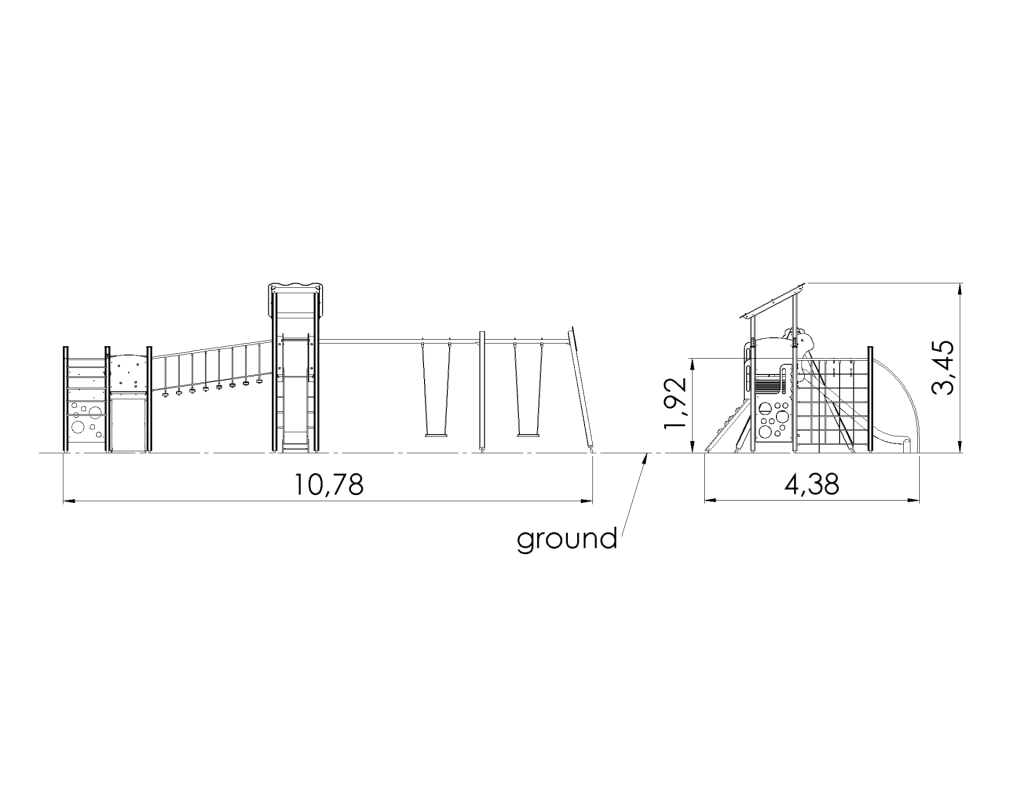

  • Width of structure: 4.38 m
  • Length of structure: 10.78 m
  • Height of structure: 3.45 m
  • Max. fall height: 1.92 m
  • Recommended age of children: 4+
  • For simultaneous use by several children: 4-8
