LM505 MF


  • 2 Year
  • 2.38 x 6.18 x 3.49 m
  • Safety

Slide for a slope with a platform ELEPHANT that is shaped like a giraffe, provides engaging activities and joy with a 2,15 metres high slide.
Product frame, support beams and metal details are made of hot-dipped galvanized steel, all fixing accessories from stainless steel. All side panels are made of 15 mm HDPE. The slide has got a stainless-steel sliding surface, which can be replaced by HDPE in case requested. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

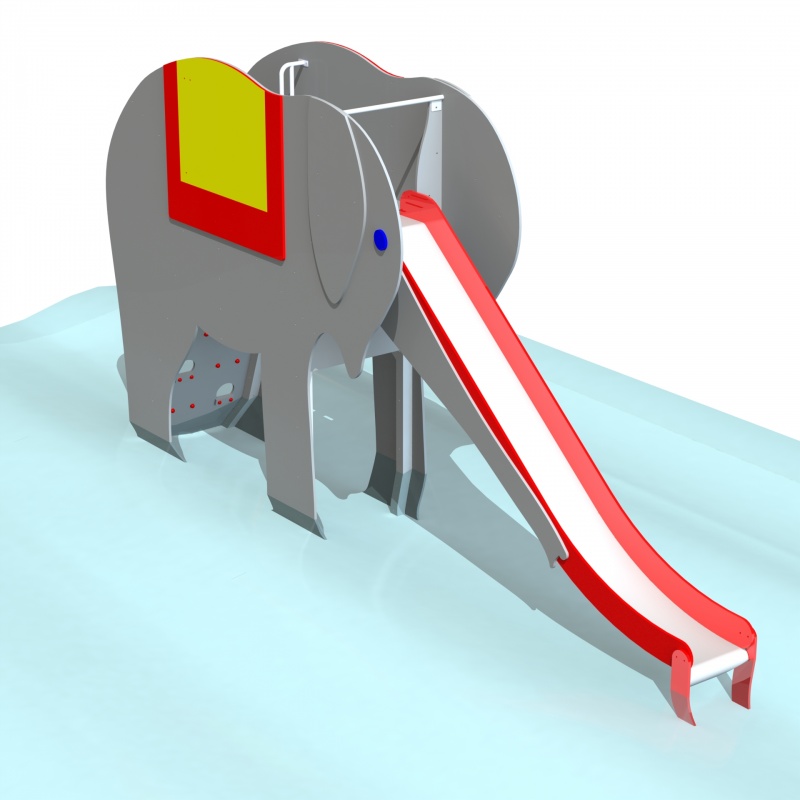

For an additional fee it is possible to order a special version that can be used in the seawater. In this case all steel is AISI 316 and the product has a special frame to be fixed in the water.

Product consists of

  • Platforms 1 pcs with a height 2.15 m, Plastic covered laminated wood
  • Slides 1 pcs with a height 2.15 m, Stainless-steel, HDPE plastic sides
  • Climbing walls 1 pcs, HDPE plastic

Product Features

  • Safety area width: 3.97 m
  • Safety area length: 9.36 m
  • Width of structure: 2.38 m
  • Length of structure: 6.18 m
  • Height of structure: 3.49 m
  • Max. fall height: 2.15 m
  • The product needs a safety surface
  • Recommended age of children: 1+
  • For simultaneous use by several children: 1-6
