LM232 FORP

Play Centre ARTHUR

  • 2 Year

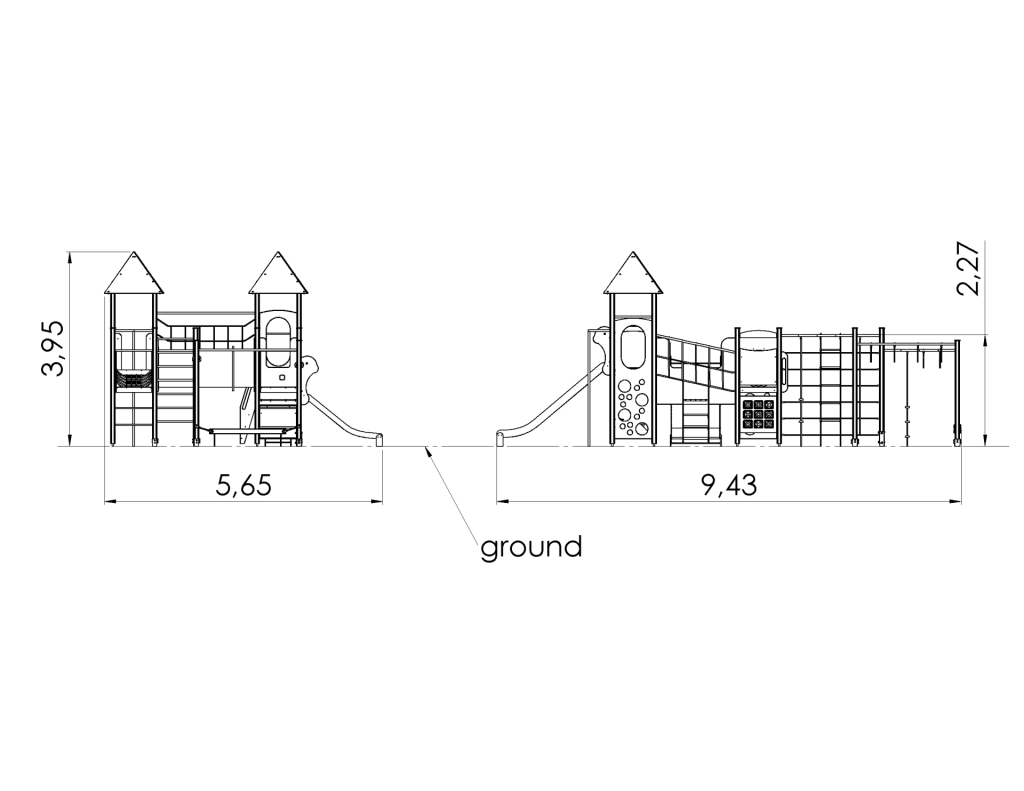

  • 5.65 x 9.43 x 3.95 m
  • Safety

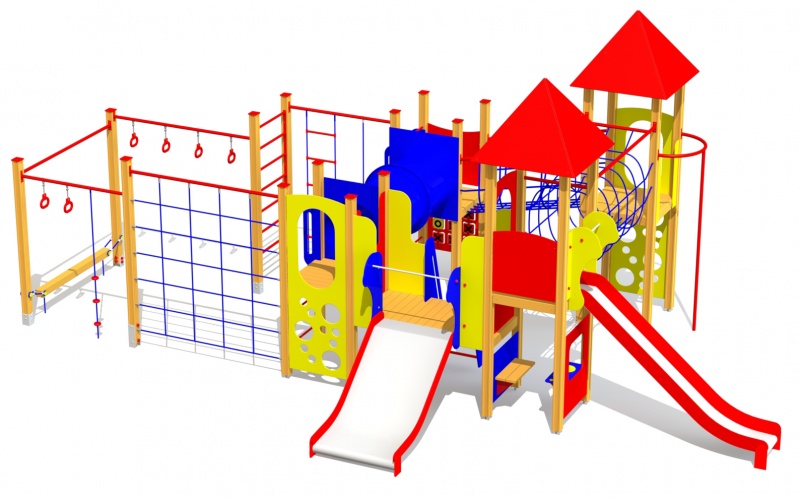

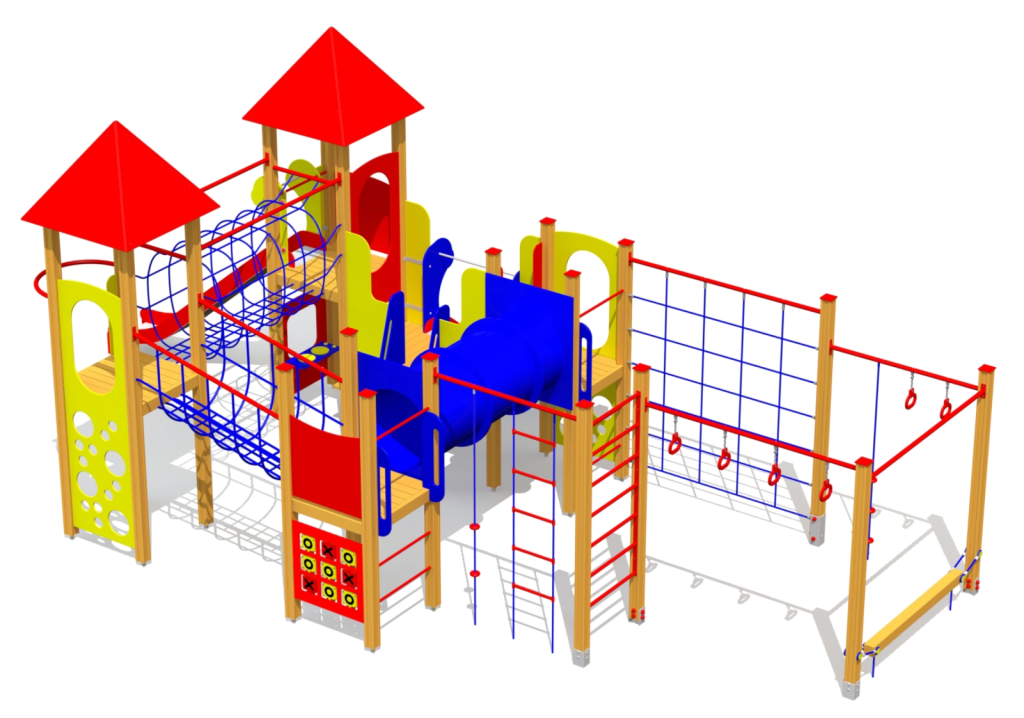

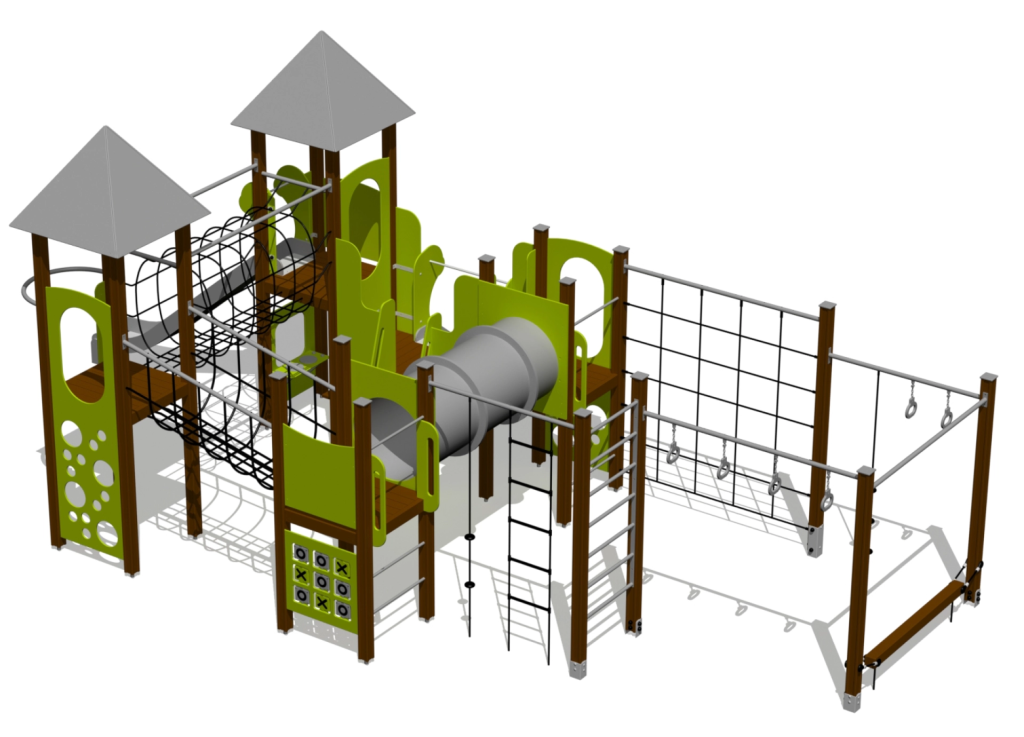

This engaging and versatile climbing and play centre provides a selection of diverse elements for many different activities. The five platforms can be accessed via ladders or climbing walls with holes. A net bridge, a crawl tunnel and a sloping bridge with handrails connect the platforms. A slide and a fireman’s pole offer excellent sliding opportunities. An adjoined climbing complex, comprised of a net wall, climbing ropes, monkey bars with handles, a shifting balancing beam, and a vertical ladder, helps develop climbing and dexterity skills. For role playing, the centre is equipped with a Tic-Tac-Toe game and a fun play corner with a bench, which can be fitted with either kitchen or car dashboard elements. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

Product consists of

  • Platforms 2 pcs with a height 1.55 m, Plastic covered laminated wood
  • Platforms 2 pcs with a height 1.2 m, Plastic covered laminated wood
  • Platforms 1 pcs with a height 0.95 m, Plastic covered laminated wood
  • Roofs 2 pcs, HDPE plastic
  • Slides 1 pcs with a height 1.55 m, Stainless-steel, HDPE plastic sides
  • Slides 1 pcs with a height 0.95 m, Stainless-steel, HDPE plastic sides
  • Climbing walls 2 pcs, HDPE plastic
  • Climbing nets 1 pcs, 16 mm six-strand PES cover braided steel ropes
  • Ladders 1 pcs, Galvanized and powder-coated steel
  • Bridges 1 pcs
  • Tunnels 2 pcs, Plastic
  • Fireman poles 1 pcs, Galvanized and powder-coated steel
  • Play corners 1 pcs, Plastic and wood
  • Activity panels 1 pcs, HDPE plastic
  • Posts 21 pcs, Laminated wood
  • Beams 1 pcs, Panels
  • Plates 9 pcs, HDPE plastic
  • Grips for hands and/or feet 11 pcs, HDPE plastic
  • Tubes 19 pcs, Galvanized and powder coated steel

Product Features

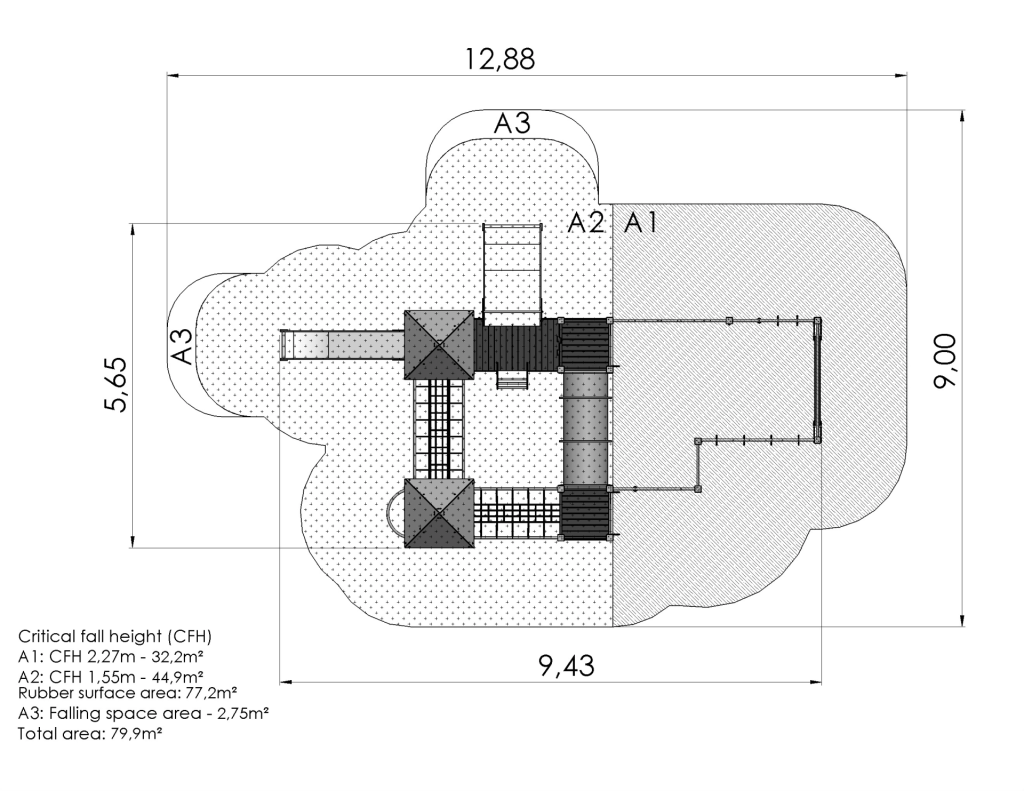

  • Safety area width: 9 m
  • Safety area length: 12.88 m
  • Width of structure: 5.65 m
  • Length of structure: 9.43 m
  • Height of structure: 3.95 m
  • Max. fall height: 2.27 m
  • Recommended age of children: 4+
  • For simultaneous use by several children: 1-24
